Teknomar

HRF 3000 hdrOzone

Heavy Molecule Hydronium Plasma Sterilizer

HRF 3000 HDROZONE
Hydronium Heavy Molecule & Hydrogen Peroxide Plasma Sterilization Device

First in the World!

4th Generation Hybrid NEW Sterilization Technology

hdrOzone
Heavy Molecule Sterilization and Plasma Effect Combined in One Device.

Hydronium + O₂ + O₃ + H₂O₂ + Plasma

THE MOST EFFECTIVE AND SAFE SOLUTION IN LUMEN STERILIZATION

There are no "Diameter and Length" Limits for all types of "Lumen Material" sterilization.

(Ø 0,1 mm. ... Diameter, Min. 15 mt. Length)

HRF3000 HDROZONE: Safe Sterilization Process Video

Any type of medical tools, plastic, lumen products in any different length and diameter, electro mechanical products and surgical items, single and multiple channels, flexible endoscopes and similar complex long products can be safely sterilized. Long and complexed endoscope sterilization and fourth channeled/ 4,5 meter long multiple flexible lumen scopes can be sterilized.

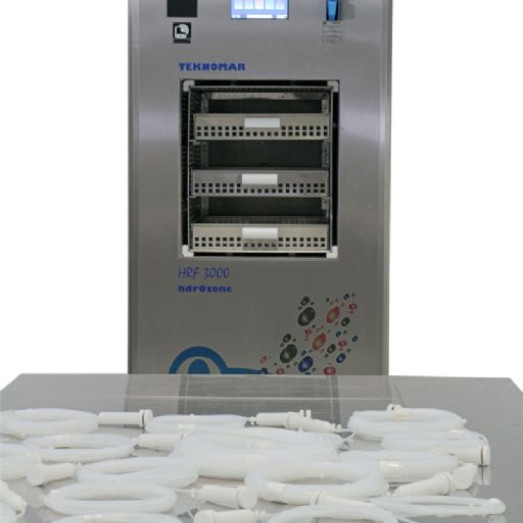

HRF 3000 hdrOzone sterilization device is manufactured for the first time by -TEKNOMAR LTD.- System is working between 37 C - 45 C, utilizing double sterilant as hydrogen peroxide (H₂O₂) and ozone (O₃) along with plasma.

The device uses 60% Hydrogen Peroxide (H₂O₂) solution and Medical Oxygen for safe and no-limit sterilization. In this way, thanks to the intelligent program design, Ozone and Hydrogen Peroxide are used together for the most effective sterilization at the lowest dose.

Materials that are sterilized by Hydronium Heavy Molecule Plasma are offered ready to use without the need for extra ventilation. There is no harmful waste, only water vapor and oxygen. For this reason, as well as safe sterilization, it offers a safe use for personnel and the environment.

Sterilization technique with the effect of heavy molecules, radicals, hydroxyls and ions, with the application of H₂O₂ and O₃, HYDRONIUM (HO₃, HO₄, H₂O₃, H₂O₄, HO₅, OOH, H₃O ... etc)

The HRF 3000 hdrOzone sterilization device uses a fixed-programmed sterilization cycle, which eliminates user error in sterilization safety. There is no need to classify the materials to be sterilized and to choose the appropriate cycle and program as in old technology devices. Mixed loading can be done.

Wide colorful touch screen enables users to select sterilization program quickly and friendly.

Device is compliance with ISO 14937

Packing Specifications: cellulose-free, synthetic materials such as polypropylene or tyvec; Sterilization of fabric, cellulose and liquid is not suitable for this sterilization method.

The HRF 3000 hdrOzone sterilization device can be used as a standalone Hydrogen Peroxide Sterilization Plasma device besides its superior properties.

Lumen Sterilization (PCD)

HdrOzone, Hydronium Heavy Molecule Plasma Sterilization Device performs sterilization of medical products and other materials with similar properties, except for conventional type disposable materials. No apparatus is needed for the sterilization of complex lumen materials.
